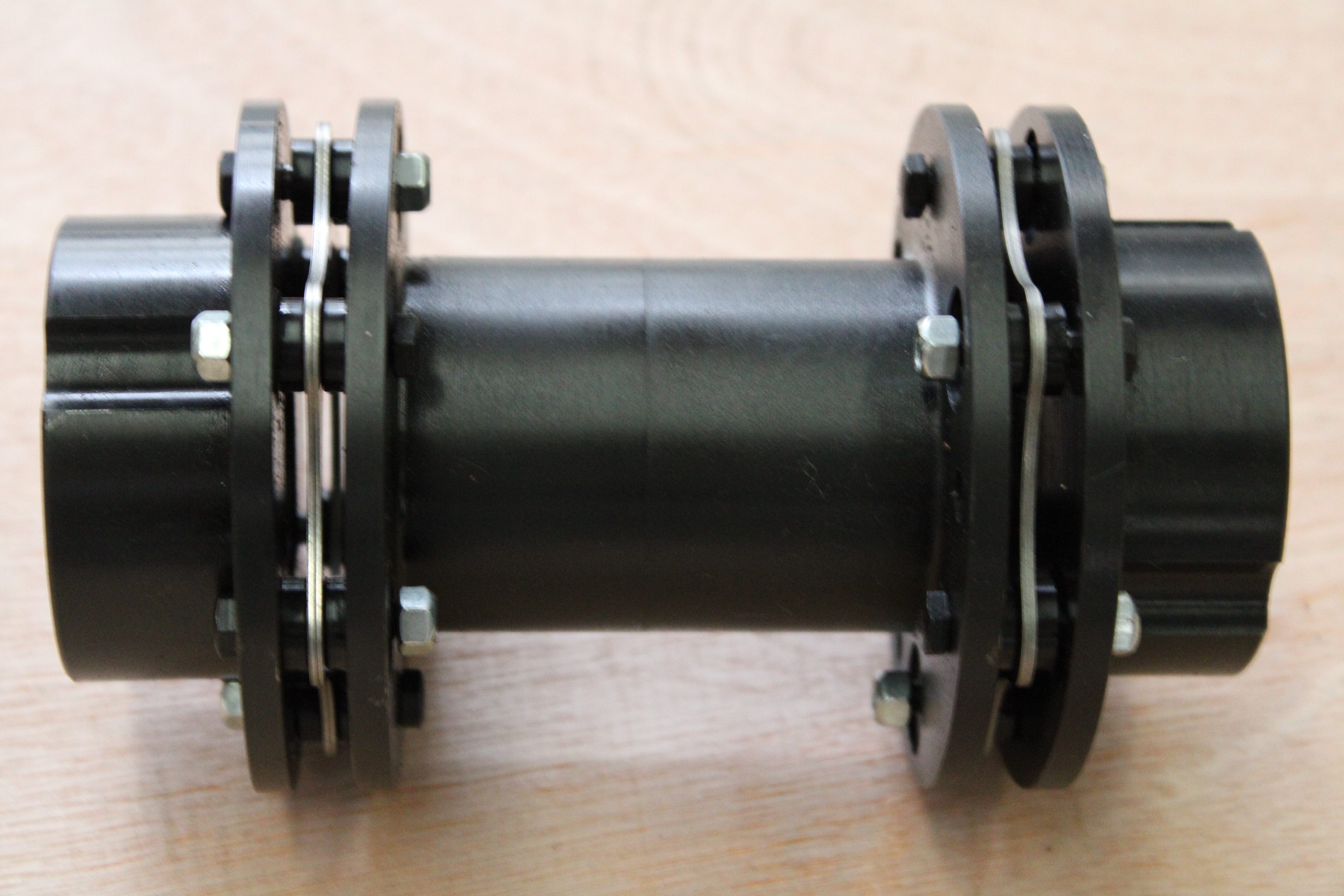

Let’s first learn about the structural principle of the diaphragm coupling. It is a product that relies on the elastic
deformation of the diaphragm to compensate for the relative displacement of the two connected shafts. It is a high-
performance flexible coupling with strong metal components. No lubricating oil is required during use, the structure
is compact, the strength is high, the service life is long, there is no rotation gap, and it is not affected by temperature
and oil pollution. It has the characteristics of acid resistance, alkali resistance and corrosion resistance, and is suitable
for high temperature, high speed, and corrosive medium working conditions. The shaft system transmission is also
used as usual.
It is mainly used by customers for shaft system transmission of various mechanical devices, such as water pumps
(especially high-power and chemical pumps), fans, compressors, hydraulic machinery, petroleum machinery, printing
machinery, textile machinery, chemical machinery, mining machinery, and metallurgy. High-speed power transmission
systems of machinery, aviation (helicopters), ships, steam turbine units, and occasions requiring high-speed transmission
need to be installed and used after dynamic balancing.
If you have any needs with diaphragm coupling, contact me and we'll produce the best products for you.
